Monitoring system that alerts caregivers based on position of infant in cradle
Exisiting infant monitoring systems are used to monitor the infant using a microphone placed near to the infaant. But there is no such monitoring system to check the infant's posture and position in the cradle. This patent describes an infant monitoring system for monitoring the cradle to monitor the posture of an infant using an alert mechanism.
About Company
Based on patent titled Infant Monitoring System published By Chigru Innovations (OPC) Private Limited
1 Introduction and claims

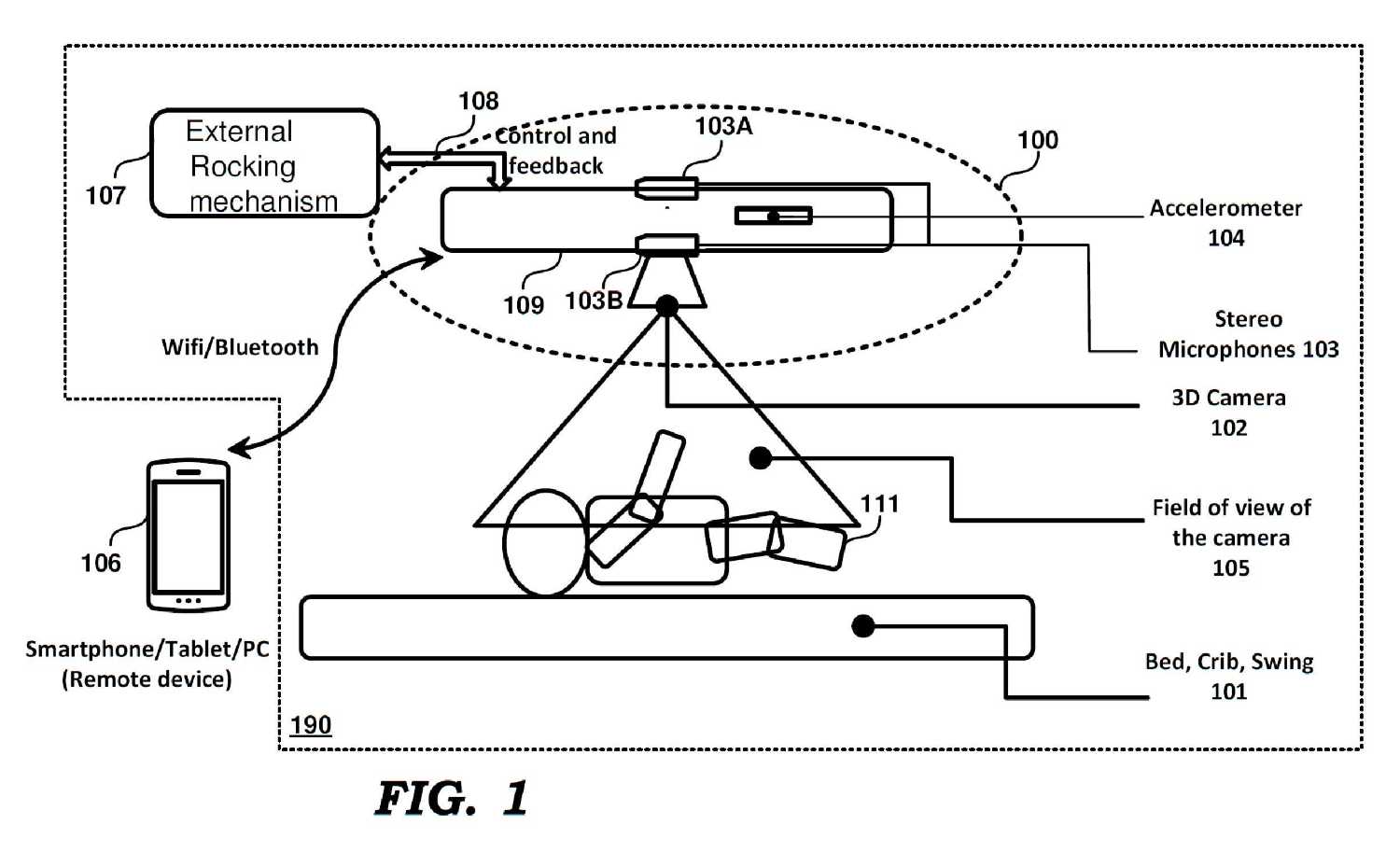

2 Ilustrates the infant monitoring system in a cradle
External rocking system 107 uses a rocking mechanism to rock the stable surface if the processing block determines that the infant is crying. A remote device 106 can receive alerts and data records from various sensors that can be accessed using an application.
External rocking system 107 uses a rocking mechanism to rock the stable surface if the processing block determines that the infant is crying. A remote device 106 can receive alerts and data records from various sensors that can be accessed using an application.
Infant monitoring system 100 consists of sensor block 109 to process the signals generated by various sensors (for example, accelerometer 104) and forwards the signal in digital form to the processing block (present inside the sensor block).
Infant monitoring system 100 consists of sensor block 109 to process the signals generated by various sensors (for example, accelerometer 104) and forwards the signal in digital form to the processing block (present inside the sensor block).
Infant bed/cradle/crib/swing 101 has a camera 102 is placed in a cradle within the field of view 105 to monitor the infants' movements.
Infant bed/cradle/crib/swing 101 has a camera 102 is placed in a cradle within the field of view 105 to monitor the infants' movements.
Stereo microphones 103 is used to generate audio signals of the sound in the vicinity of the infant. The stereo microphones contain two microphones 103A & 103B. The infant is placed in between the first microphone and the second microphone.
Stereo microphones 103 is used to generate audio signals of the sound in the vicinity of the infant. The stereo microphones contain two microphones 103A & 103B. The infant is placed in between the first microphone and the second microphone.
Accelerometer 104 is used to detect the frequencies that are not due to the heartbeats of the infant. These signal are sent to sensor block 109.
Accelerometer 104 is used to detect the frequencies that are not due to the heartbeats of the infant. These signal are sent to sensor block 109.

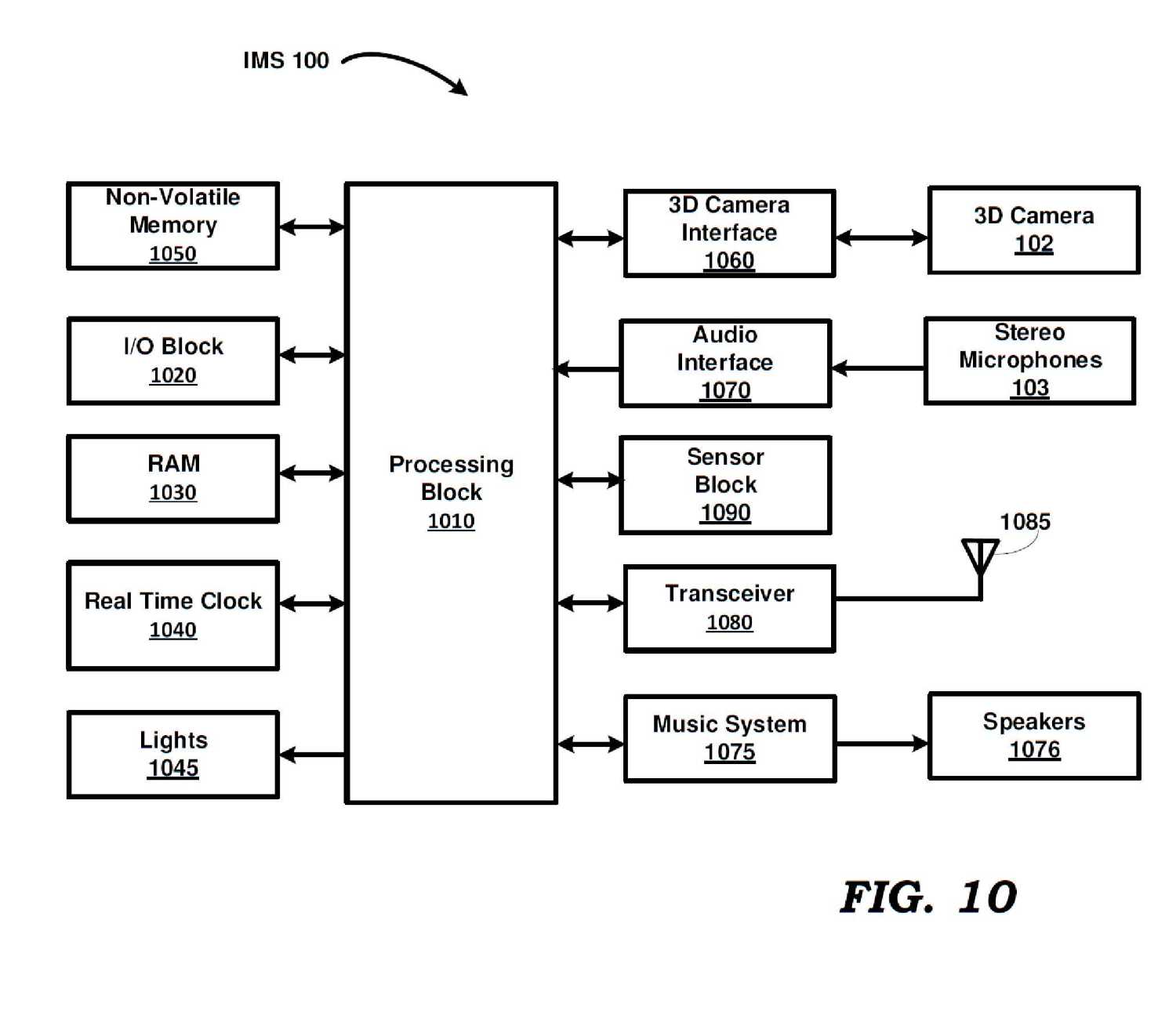

3 Block diagram of infant monitoring system (IMS)
I/O block 1020 provides a user interface from input devices such as a keypad, and output device like an LCD display with an Infant Monitoring System (IMS). RAM 1030 is a volatile random access memory and is used for storing instructions and data
I/O block 1020 provides a user interface from input devices such as a keypad, and output device like an LCD display with an Infant Monitoring System (IMS). RAM 1030 is a volatile random access memory and is used for storing instructions and data
Transceiver 1080 transmit and receives data (alerts) from the processing block, modulate (e.g. WiFi/Bluetooth standards) a carrier with the data and transmit the data on a wireless medium via an antenna 1085 from a smartphone, and provides the signals to the transceiver.
Transceiver 1080 transmit and receives data (alerts) from the processing block, modulate (e.g. WiFi/Bluetooth standards) a carrier with the data and transmit the data on a wireless medium via an antenna 1085 from a smartphone, and provides the signals to the transceiver.
Processing block 1010 contains multiple processing units internally, each designed for a specific task. The processing block retrieves and executes the instructions to provide several features of the IMS. These instructions are stored in non-volatile memory ROM 1050.
Processing block 1010 contains multiple processing units internally, each designed for a specific task. The processing block retrieves and executes the instructions to provide several features of the IMS. These instructions are stored in non-volatile memory ROM 1050.
The 3D camera interface 1060 contains circuitry for processing and operating 3D camera 102. Audio interface 1070 receives audio signals in analogue form from the stereo microphone 103. Both the interface provides data (3d image and audio) generated to the processing block.
The 3D camera interface 1060 contains circuitry for processing and operating 3D camera 102. Audio interface 1070 receives audio signals in analogue form from the stereo microphone 103. Both the interface provides data (3d image and audio) generated to the processing block.
Sensor block 1090 contains sensors such as an accelerometer (e.g., 11 MEMS form). Sensor block processes the signals generated by the sensors and forwards the processed signal in digital form to the processing block.
Sensor block 1090 contains sensors such as an accelerometer (e.g., 11 MEMS form). Sensor block processes the signals generated by the sensors and forwards the processed signal in digital form to the processing block.
The music system 1075 contains music playing and recording devices and sound/tone generators. It is controlled by processing block to render music/specific sounds/notes via the speaker 1076.
The music system 1075 contains music playing and recording devices and sound/tone generators. It is controlled by processing block to render music/specific sounds/notes via the speaker 1076.
The real-time clock 1040 contains oscillator(s) that maintains the current time and generates the clock signals required for the operation of the other blocks. Lights 1045 contain sources of light such as bulbs, LEDs, etc. operated by the processing block 1010.
The real-time clock 1040 contains oscillator(s) that maintains the current time and generates the clock signals required for the operation of the other blocks. Lights 1045 contain sources of light such as bulbs, LEDs, etc. operated by the processing block 1010.

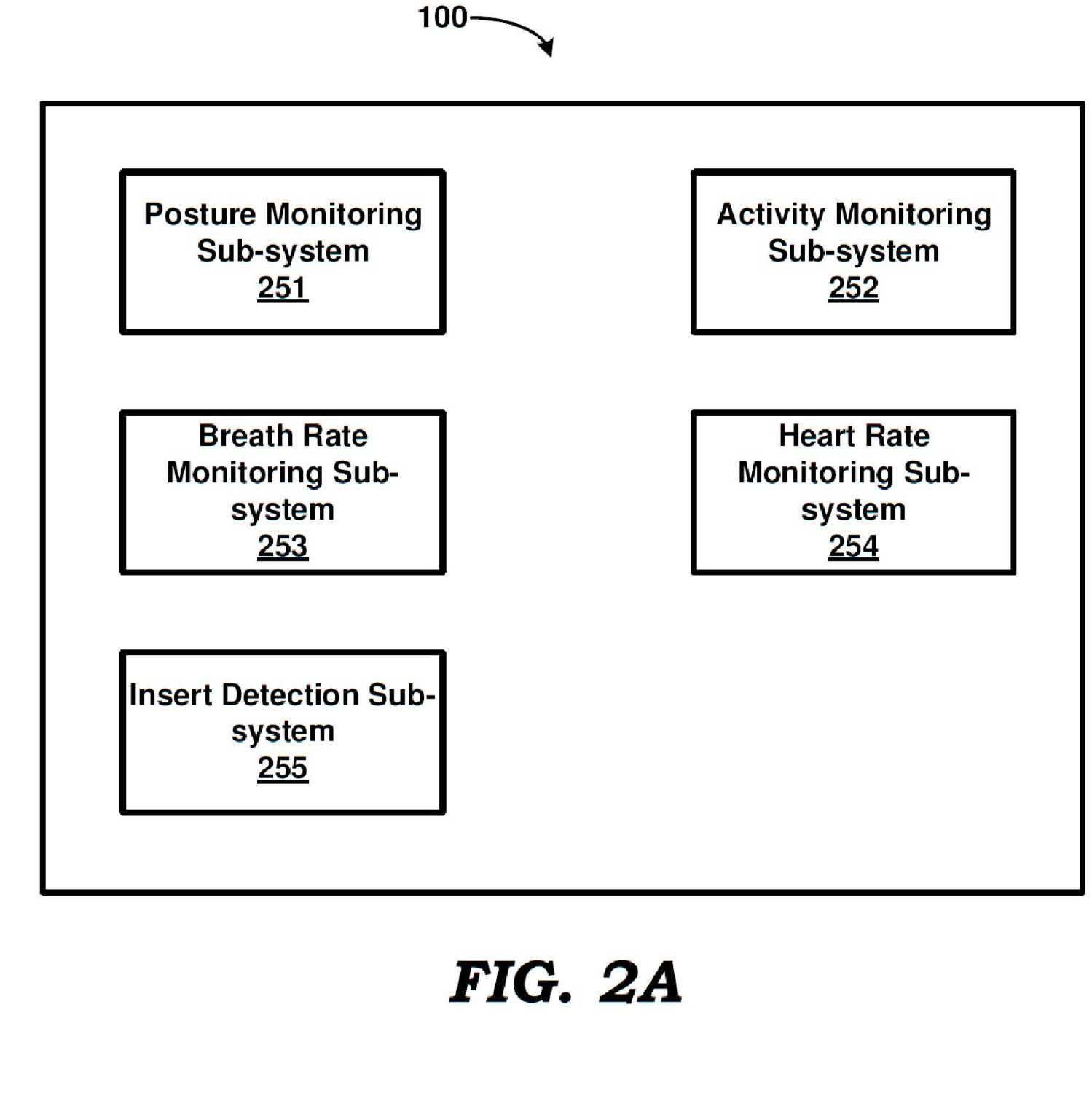

4 Functional view of the infant monitoring system
Breath-rate detection system 253 uses an algorithm that depends on the identification of the torso and the belly. The insect detection system 255 detects random motion of insects and large specks of dust form on the basis of filtering.
Breath-rate detection system 253 uses an algorithm that depends on the identification of the torso and the belly. The insect detection system 255 detects random motion of insects and large specks of dust form on the basis of filtering.
The heart rate of the infant is monitored by the Heart monitoring sub-system 254 using images of the face and the neck of the infant since the shade of the face changes slightly in the 3D image.
The heart rate of the infant is monitored by the Heart monitoring sub-system 254 using images of the face and the neck of the infant since the shade of the face changes slightly in the 3D image.
Infant activity monitoring block 252 detects whether the infant is asleep or awake and monitors the active movements of the infant like crying, sleeping, sitting, standing by processing the images and audio data collected.
Infant activity monitoring block 252 detects whether the infant is asleep or awake and monitors the active movements of the infant like crying, sleeping, sitting, standing by processing the images and audio data collected.
Posture monitoring sub-system 251 contains an image filtering block, skeletal information extraction block, posture detection block, posture monitoring block and alert generation block. The skeletal information block extracts the skeletal information from the filtered image.
Posture monitoring sub-system 251 contains an image filtering block, skeletal information extraction block, posture detection block, posture monitoring block and alert generation block. The skeletal information block extracts the skeletal information from the filtered image.
