<h3 style='margin:5px 0 20px'>Text from the patent</h3> [0001]Embodiments of the present disclosure relate tomonitoring exercise posture, and more particularly to a system and method to monitoran exercise postureof at least one user.<br /> <br /> [0002]Physical exercise is any kind of bodily activity which enhances or maintains physical fitness and overall wellness of a body. Further, modern technologies provide an interactive platform for enhancing the physical exercise of a user with the help of multimedia. <br /> <br /> [0003]In one approach, a system is implemented on an exercise mat to guide a user’sperformanceof exercises on the exercise mat. The system provides graphicalillustrations on the exercise mat for the user to perform the exercise based on the graphicalillustrations providedby the system on the exercise mat. However, in such system the exercisedone by the user is not monitored andhence the user is notguided. Also, the graphicalillustration may end up confusing the user to perform the exercise.Further, such system may also intrude the privacy of the user. Also, in such system, the existing mat has to be discarded in order to make use of such a system. <br /> <br /> [0004]In another approach, making useof the modern technology a system to detect the posture of theuser is built, wherein the system uses a plurality of pressure sensors which is fabricated on a substrate layer which is further imposed on the exercise mat. The system detects the amount of pressure applied by the user on the exercise mat and compares the applied pressure with a pre-defined pressure gradient. However, in such system the contact of the user with the exercise mat is not detected accurately and hence fails to detect if the user is performing the exercise in an exact way in which the exercisehas to be performedor not. Further the system uses a single layerof substrateto fabricate the plurality of sensors which may lead to high power consumption and high leakage current in the substrate layer. Further, the system does not detect and measurethe angle or position of the body of the user while performing the exercisewhen the user is not in contact with the exercise mat.<br /> <br /> [0005]Hence, there is a need for an improvedsystem and method to monitoran exercise postureof at least one user.

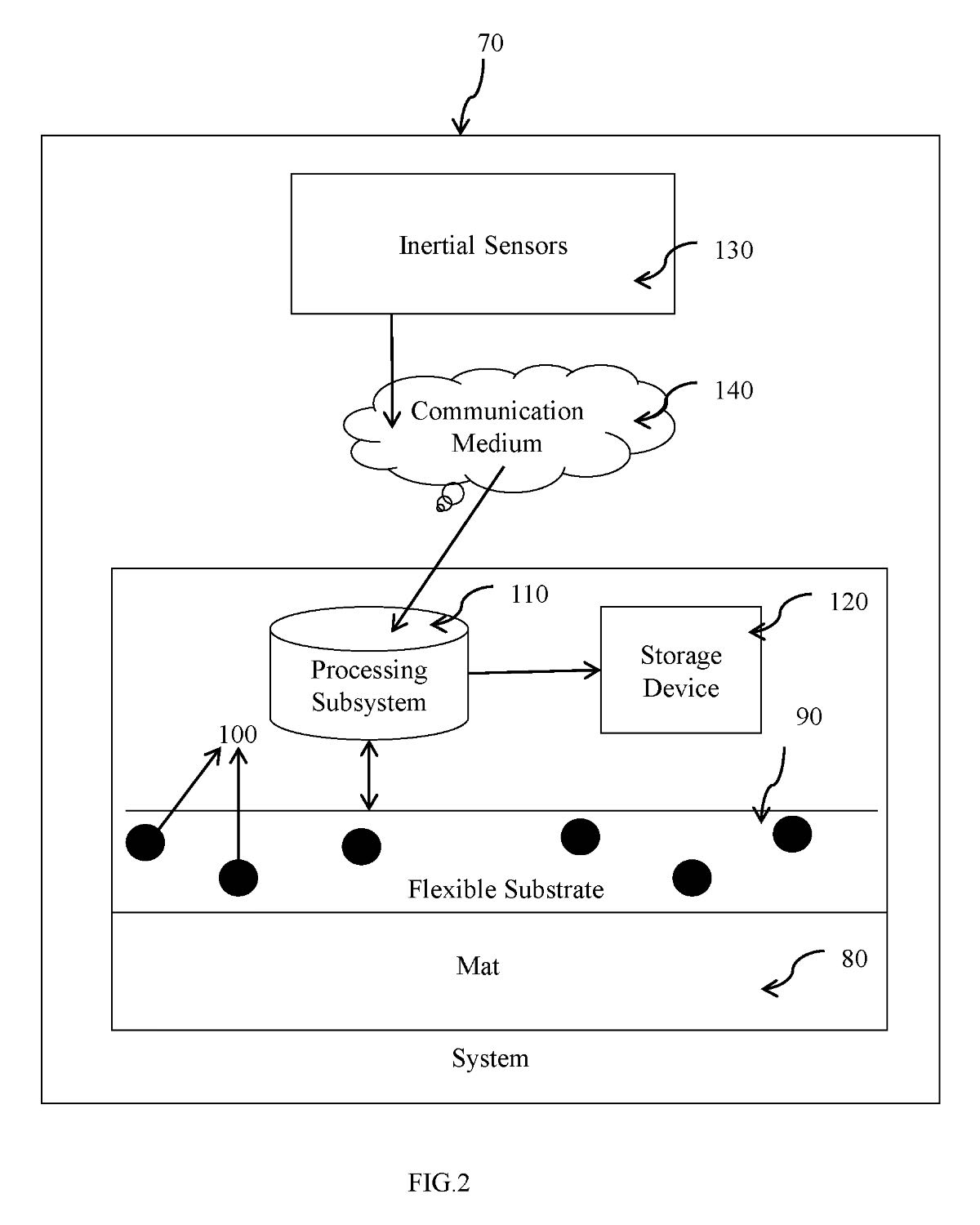

<h3 style='margin:5px 0 20px'>Text from the patent</h3> [0042]FIG. 2 is an exemplary embodiment representing a system to monitor an exercise posture of at least oneuser of FIG. 1 in accordance with an embodiment of the present disclosure.The system(70)includes a mat(80), wherein the mat (80) is substantially similar to a mat (20) of FIG. 1. The mat (80) may be configured to allow at least one user to perform at least one exercise on the mat(80). In one embodiment, the mat (80) may be a Pilate mat, a yoga mat, a fitness mat or a wellnessmat. <br /> <br /> [0043]Further, the system (70) includes a flexible substrate (90) which may be placed on top of the mat(80), wherein the flexible substrate (90) may include a plurality of contact sensors(100). Further, the flexible substrate (90) is substantially similar to a flexible substrate (30) of FIG. 1 and the plurality of contact sensors (100) is substantially similarto one or more contact sensors (40) of FIG.1. Further, the at least one user may perform at least one exercise on the mat(80). <br /> <br /> [0044]Further, while performing the at least one exerciser, the at least one user may make a contact of at least one part of a body of the at least one userwith the mat (80). Further, the contact of the at least one part of the body of the at least one user may be sensed by the plurality of sensors(100). Further, the plurality of sensors (100) may generate a contact signalon sensingthe contact of the at least one part of the body of the at least one user.<br /> <br /> [0045]Further, a contact signal which may be generated by the plurality of sensors (100) may be transmitted to a processing subsystem(110), wherein the processing subsystem(110) may be operatively coupled to the flexible substrate(90). Further, the processing subsystem (110) may process the contact signal and may transmit a processed contact signal to a storage device(120), wherein the storage device (120) may be operatively coupledto the processing subsystem(110). Further, theprocessing subsystem (110) is substantially similar to a processing subsystem (50) of FIG. 1, andthe storage device (120) is substantially similar to a storage device (60) of FIG.1. <br /> <br /> [0046]Further, the system (70) may include a plurality of inertial sensors (130) which may be communicatively (140) coupled to the processing subsystem(110). Further, the plurality of inertial sensors (130) may be configured to measure an angle <br /> 15and a posture of the at least one part of the body of the at least one user while performing at least one exercise on the mat(80). Further, depending on the angle and the posture of the at least one part of the at least one user, the plurality of inertial sensors (130) may sense the angle and the posture of the at least one part of the at least one user and may generate an angle signal. Further, a generated angle signal may be transmitted to the processing subsystem (110) for further processing of the angle sensor. <br /> <br /> [0047]Further, the processing subsystem (110) may store the processed angle signal in the storage device(120). Further, the processing subsystem (110) may combine a stored contact signal and a stored angle signal to produce a combined signal. <br /> <br /> [0048]Also, the storage device (120) may be stored with a pre-defined exercise posture signals which may be used by the processing subsystem (110) as a reference signal. In one embodiment, at least one user expert may perform the at least one exercise and the plurality of contact sensors (100) and the plurality of inertial sensors (130) may sense and generate a contact signal and an angle signal for the at least one exercise which may be performed by the at least one user expert. In such embodiment, the contact signal and the angle signal may be combined togenerate a reference signal, wherein the reference signal may be stored as a pre-defined exercise posture signals in the storage device (120) of the system(70). Further, the processing subsystem (110) may compare the combined signal with the pre-defined exercise posture signals to determine an accurate posture of the at least one exercise which may be performed by the at least one user on the mat(80). <br /> <br /> [0049]Further, based on a result after comparing the combined signal and with the pre-defined exercise posture signals, the at least one exercise performed by the at least one user may be determined whether the performed at least one exercise is rightly performed by the at least one user by rightly positioning the at least one part of the body of the at least one user which may be required to perform the at least one exercise. Further, thecombined signal may be transmitted to at least one hand held device which may be accessed by the at least one user or by the at least one user expert. In such embodiment, the at least one user or the at least one user expert may be aware or may track whether the at least one exercise performed by the at least one <br /> 16user has been performed in a right way or not. Further, the at least one user expert may track and may also guide the at least one user regarding the at least one exercise which may be performed by the at least one user on the mat(80).

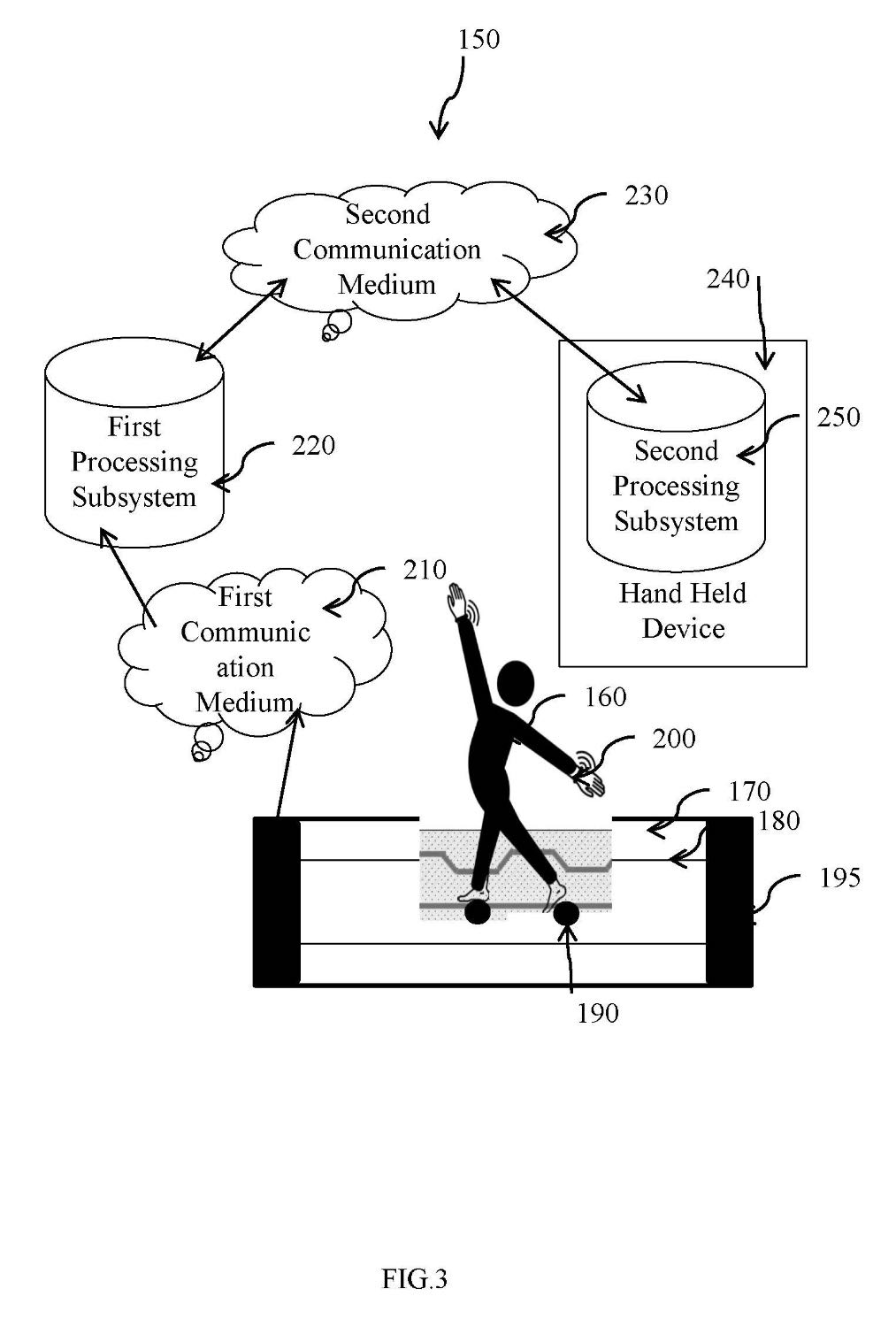

<h3 style='margin:5px 0 20px'>Text from the patent</h3> [0050]FIG. 3 is another exemplary embodiment representing a system to monitor an exercise posture of at least one user of FIG. 1 in accordance with an embodiment of the present disclosure.A user (160) may perform a yoga exercise on a mat(170), wherein the mat (170) is substantially similar to a mat (20) of FIG.1. Further, the system (150) may include a plurality of contact sensors (190) which may befabricated onto a flexible substrate (170), wherein the flexible substrate (170) may be placedon top of the mat(170). Further the plurality of contact sensors (190) is substantially similar to one or more contact sensors(40) and the flexiblesubstrate (170) is substantially similar to a flexible substrate(30) of FIG. 1. <br /> <br /> [0051]Further, the flexible substrate (170) may include a first layer which may be fabricated with a conducting path (180), wherein the conducting path may be configured to withstand an electric power. Further, the flexible substrate (170) may include a second layer which may be fabricated with the plurality of contact sensors (190) in a form of a matrix. Also, the flexible substrate (170) may include a third layer which may be place in-between the first layer and the second layer, wherein the third layer may include a plurality of slots to make a connection between the plurality of contact sensors (190) and the conducting path (180) to complete a circuit of the plurality of sensors (190). <br /> <br /> [0052]Further, the flexible substrate (170) may include a supporting structure (195) which may be configured to receive the contact signal from the plurality of contact sensors (190). The supporting structure (195) may include a processing device, a power supply and a wireless communication device. <br /> <br /> [0053]Further, as the user (160) may perform a yoga exercise, the user (160) may place at least on leg and at least one hand on the mat (170) to perform the yoga exercise. Further, as the user (160) may place the at least on leg and the at least one hand on the mat(170), the plurality ofcontactsensors (190) which may be fabricated at that particular place where the user (160) may place the at least on leg and the at least one hand, may sense a contact made by the at least on leg and the at least one hand of the user (160) withthe mat(160). Further a sensed contact may be used to generate a contact signal, wherein the contact signal may describe a type of contact made by the at least on leg and the at least one hand of the user(160).<br /> <br /> [0054]Further, the contact signal may be transmitted to a processing device which may be operativelycoupled to the flexible substrate(190). Further, the processing device may process the contact signal. <br /> <br /> [0055]Further, a processed contact signal may be transmitted to a first processing subsystem (220) through a wireless transmission device through a first communication medium(210), wherein the first processing subsystem (220) is substantially similar to a processing subsystem (50) of FIG. 1. In one embodiment, the wireless transmission device may be a Bluetooth device, a Bluetooth low energy (BLE) device or a wireless fidelity (Wi-Fi) device. Further, the first processing subsystem (220) may be communicatively coupled to the mat(170). <br /> <br /> [0056]Further, the user (160) may be coupled with a wearable device(200), wherein the wearable device (200) may include a plurality of inertial sensors which may be communicatively coupled to the first processing device (220) through the first communication medium(210). <br /> <br /> [0057]Further as the user (160) may perform the yoga exercise using at least one hand and at least one leg, the wearable device (200) on the user’s hand may sense an angle ora position of at least one limb of the at least one hand or the at least one leg of the user(160). Further, a sensed angle of the at least one limb of the at least one hand or the at least one leg of the user(160) may be transmitted to the first processing subsystem (220) through a first communication medium(210). <br /> <br /> [0058]Further, a yoga expert may perform at least one yoga exercise on the mat (170) prior the user (160) performs the yoga exercise. Further, the one or more contact sensors (190) may sense an expert contact signal which may be stored in the storage device of the flexible substrate(170). Further, the yoga expert may be coupled with the wearable device (200) which may include the plurality of inertial sensors which may be configured to sense and generate an expert angle signal. Further, the expert contact signal and the expert angle signal may be transmitted to the first processing subsystem (220) through the first communication medium (210) for further processing. Also, the expert contact signal and the expert angle signal may be combined to generate an expert posture signalwhich may be stored in the pre-defined storage device as the pre-defined set of exercise posture signals. <br /> <br /> [0059]Further, the first processing subsystem(220) may combine the contact signal and the angle signal which may be generated whilethe user (160) may beperforming the yoga exercise on the matto generate a combined signal. Further, the combined signal may be compared with the pre-defined set of exercise posture signals. The combined signals may be compared with the pre-defined set of exercise posture signals to determine if the yoga exercise performed by the user (160) is done accurately or not. In one embodiment, the at least one yoga exercise done by the yoga expert may be referred to as an accurate way for doing the at least one yoga exercise based on which the user (160) performing the yoga exercise may be monitored. <br /> <br /> [0060]Further,the combined signal may be transmitted to a hand held device (240) of the user or the yoga expert through a second communication medium(230). In one embodiment, the second communication medium (230) may be a wireless communication medium. In such embodiment, the wireless communication medium may be a Bluetooth medium, a BLE medium or a Wi-Fi medium. In another embodiment, the hand held device (240) may be the mobile phone, the laptop or the tablet. Further, based on the combined signal received on the hand held device(240),a second processing subsystem (250) may process the received combined signal based on whichthe yoga expert may monitor and also guide the user (160) a rightway of performing the yoga exercise.

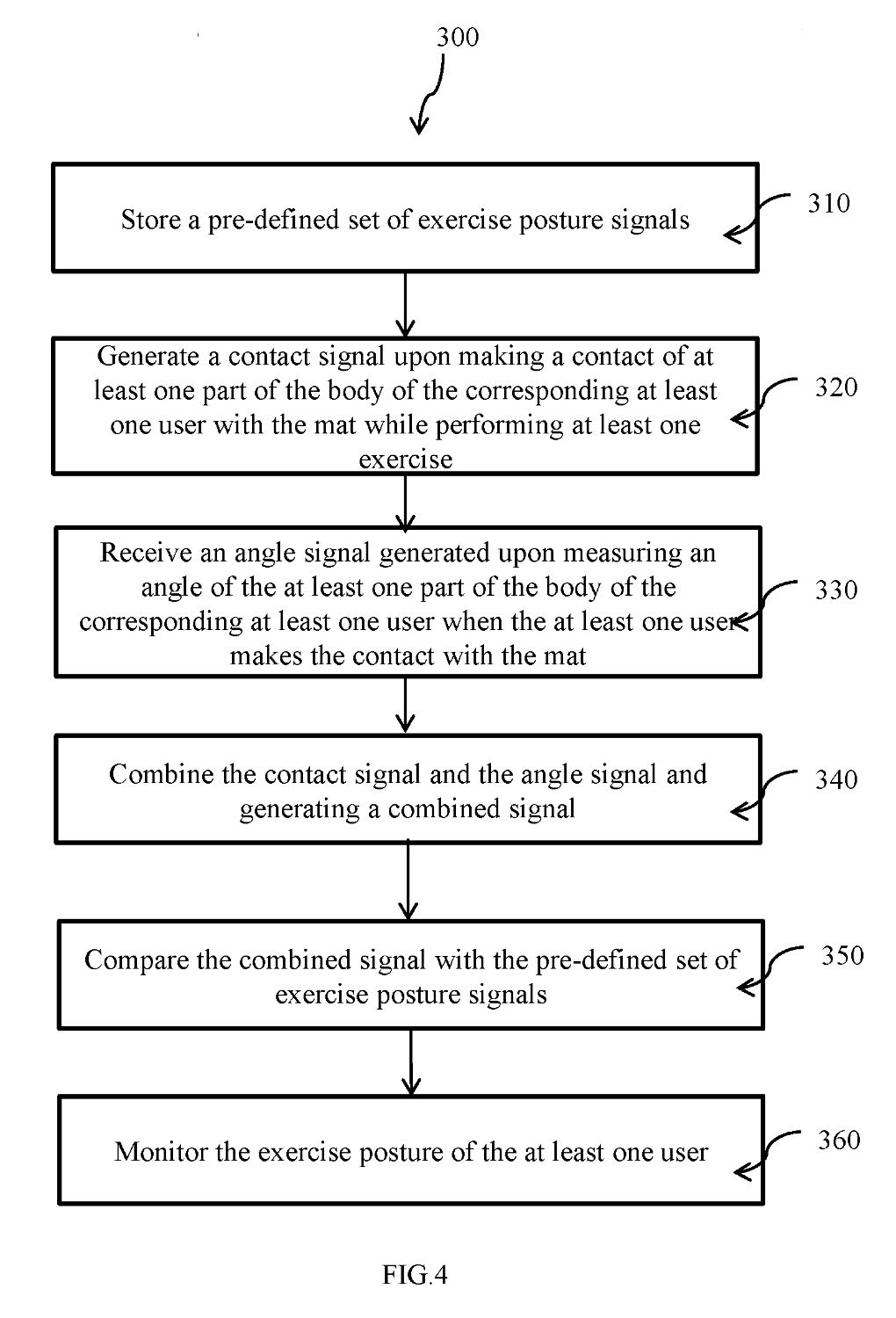

<h3 style='margin:5px 0 20px'>Text from the patent</h3> [0061]FIG. 4 is a process flow for monitoring an exercise posture of the at least one userin accordance with an embodiment of the present disclosure. The method (300) includes storing a pre-defined set of exercise posture signals(310). In one embodiment, the pre-defined set of exercise posture signals may be generated and may be stored when at least one user expert may perform at least one exercise on the mat. In another embodiment, the pre-defined set of exercise posture signals may be stored on a remote server such as a cloud server. <br /> <br /> [0062]The method (300) also includes generatinga contact signal upon making a contact of at least one part of the body of the corresponding at least one user with the mat whileperforming the at least one exercise(320).In one embodiment, generating the contact signal may include generating the contact signal by one or more contact signals when the user may make a contact of the at least one part of the body with the mat while performing the at least one exercise on the mat. In such embodiment, the contact signal may be generated to monitor a type of contact made by the user while performing the at least one exercise.<br /> <br /> [0063]The method (300) further includes receiving an angle signal generated upon measuring the angle of the at least one part of the body of the corresponding at least one user when the at least one user makes the contact with the mat(330). In one embodiment, the angle signal may be generated by at least one inertial sensor. In such embodiment, the at least one inertial sensor may be operatively coupled to a wearable device. In one embodiment, thewearable device may be worn by the user on at least one part of the body while performing the at least one exercise. In another embodiment, the angle sensor may be generated to calculate an angle or a posture of the at least one user while performing the at least one exercise making use of at least one part of the body of the user. <br /> <br /> [0064]The method (300) further includes combining the contact signal and the angle signal and generating a combined signal(340). In one embodiment, the contact angle may be combinedwith the angle signal to know the exact position of the user while performing the at least one exercise on the mat. In another embodiment, combining the contact signal and the angle signal and generating a combined signal may be done by using a kalman filter method or a complementary filter method.<br /> <br /> [0065]The method (300) further includes comparing the combined signal with the pre-defined set of posture signals(350). In one embodiment, comparing the combined signal with the pre-defined set ofexerciseposture signals, wherein the pre-defined set of exercise posture signals may be stored in a storage device or on a remote server. In such embodiment, the remote server may be a cloud server.In one embodiment, a result may be generated based on a comparison of the combined signal with the pre-defined set of exercise posture signals. <br /> <br /> [0066]The method (300) further includes monitoring the exercise posture of the at least one user(360). In one embodiment, the result which may be generated by comparing the combined signal and the pre-defined set of exercise posture signals may be utilised to keep a track on the at least one exercise performed by the at least one user. In such embodiment, the at least one exercise performed by the at least one user on the mat may be monitored in real time. In another embodiment, the method may further include transmitting a monitored exercise posture of the at least one exercise performed by the at least one user to a hand held device. In such embodiment, the hand device may be a laptop, a tablet or a mobile phone. In another embodiment, a user expert may user the hand held device to monitor the at least one exercise performed by the at least one user and the user expert may also provide suggestions to the at least one user regardingthe at least one exercise.
